Laser Welding Fume Extractors — FH-8 & 8 Series

Cartridge dust collectors for laser welding, soldering, and fine metal powder removal

Reborix FH-8 Cartridge Dust Collector
Fiber Cutting · Welding · Standard

Model FH-8 / FH-8S — Cartridge Dust Collectors

Specifically designed for fiber laser cutting and hand-held laser welding — applications producing fine metal powder that requires cartridge filtration with pulse back-blow cleaning.

  • FH-8: 1,000 m³/h | 1.2 KW | 85 KG
  • FH-8S: 3,000 m³/h | 2.3 KW | 103 KG — upgraded build, programmable pulse cleaning
  • 4× PTFE membrane cartridge filters — 99.9% efficiency at 0.3μm
  • Pulse back-blow system — automatic filter cleaning extends cartridge life
  • 3-stage filtration: Stainless Mesh + PTFE Membrane Cartridges + Activated Carbon
  • 24-hour continuous operation capable
  • For hand-held fiber laser welding (1,000–3,000W)
  • CE certified | 12-month warranty
Get Quote → FH-8S full details →

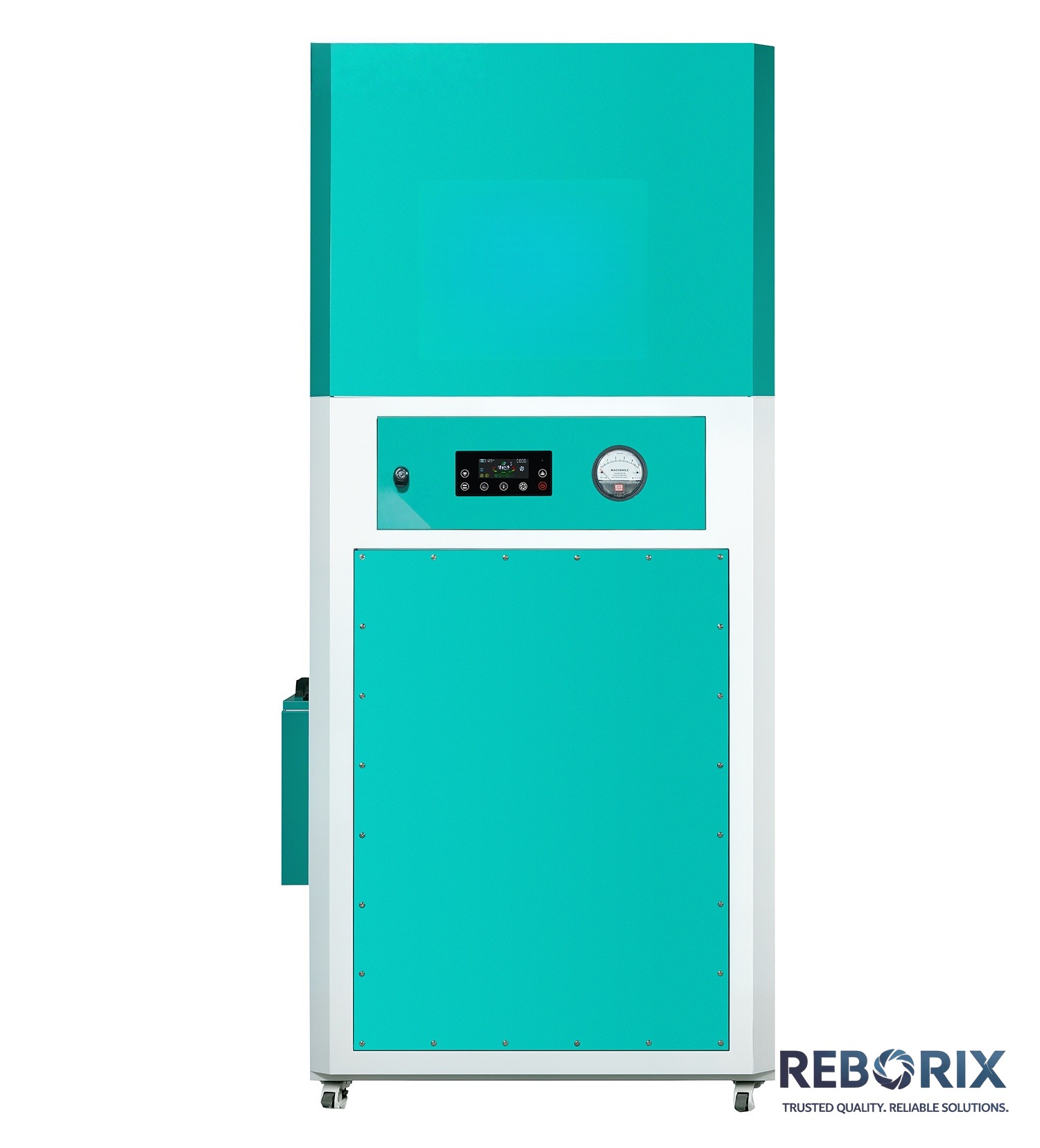

Reborix FH-8-2 Compact Welding Extractor
Compact · Single Station

Model FH-8-2 — Single-Arm Welding Extractor

Compact single-inlet unit for individual welding stations or small soldering benches. Easy shop-floor mobility with heavy-duty casters.

  • 1,500 m³/h | 2.2 KW | 120 KG
  • 4× PTFE membrane cartridge filters with pulse cleaning
  • 3-stage filtration: Mesh + PTFE Cartridges + Activated Carbon
  • Compact footprint with swivel casters — move between workstations
  • Ideal for single welding station or small soldering bench
  • CE certified | 12-month warranty
Get Quote →

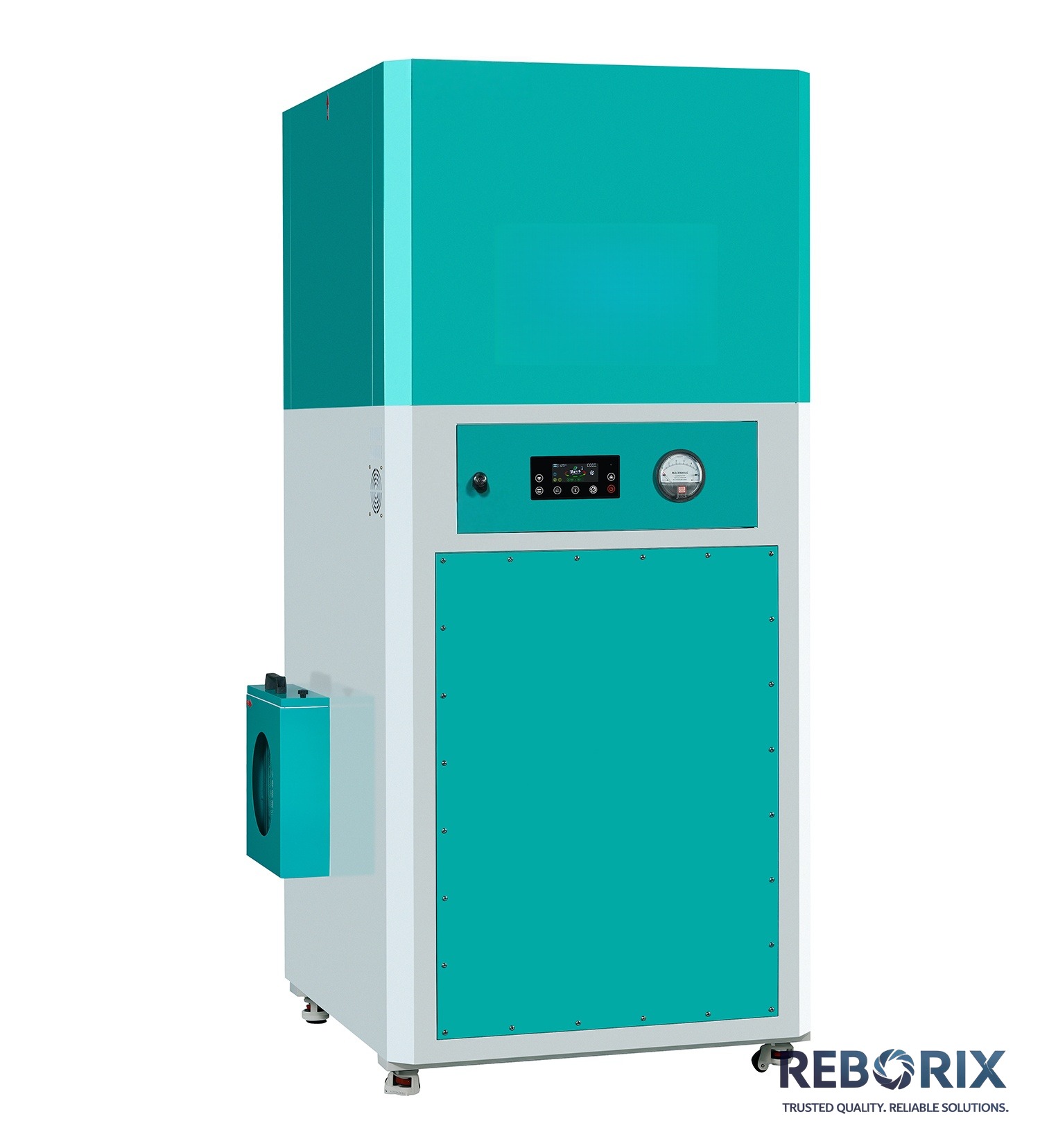

Reborix FH-8-3 FH-8-4 Multi-Station
Multi-Station · Expandable

Model FH-8-3 / FH-8-4 — Multi-Station Central Systems

Built on the FH-8 modular platform for workshops with 3–6 welding stations. Centralized dust collection with expandable inlet configuration.

  • FH-8-3: 3+ inlets | 3,000 m³/h | 6× PTFE membranes
  • FH-8-4: 4+ inlets | 6,000 m³/h | 9× PTFE membranes
  • Expandable modular design — add inlets as your shop grows
  • Programmable pulse back-flushing — automatic cleaning for every cartridge
  • Centralized duct collection — cleaner shop floor, less noise
  • CE certified | 12-month warranty
Get Quote →
Reborix 8-2 8-3 8-4 3-Phase Industrial Fume Extractor
Industrial 3-Phase · High-Power Fiber

Model 8-2 / 8-3 / 8-4 — 3-Phase Industrial Systems

Three-phase heavy-duty systems for high-power fiber laser cutting (3–12 KW). PTFE membrane filters with 0.3μm / 99.9% efficiency. Built for 24/7 production.

  • 8-2: 4,000–6,000 m³/h — for 3 KW fiber cutting
  • 8-3: 6,000–8,000 m³/h — for 6 KW fiber cutting
  • 8-4: 8,000–11,000 m³/h — for 12 KW fiber cutting
  • 380V 3-phase power | Brand-name motor (MTBF > 50,000 hours)
  • PTFE membrane cartridge filters — superior to standard HEPA for metal dust
  • 0.3μm / 99.9% filtration efficiency
  • CE certified | 12-month warranty
Get Quote →

When to Choose FH-8 (Cartridge) vs 12 Series (ESP)

FactorFH-8 Cartridge12 Series ESP
Best forMetal powder, welding dustOil smoke, VOCs, sticky fumes
Laser typeFiber welding, soldering, hand-heldCO₂ cutting, marking, engraving
Filter cleaningPulse back-flushing (automatic)Wash with water (manual, reusable)
Filter mediaPTFE membrane (99.9% @ 0.3μm)Pre-filter + ESP + UV + Carbon
Annual consumables$120–200 (cartridge replacement)$50–90 (pre-filters only)
Initial cost per m³/hLower initial investmentLower long-term TCO
Continuous operation24/7 capable (all models)Standard duty (12-1, 12-3, 12-4)

Welding Fume? Let's Find the Right Model

Tell us your welding setup — laser type, power, number of stations — and we'll recommend the right FH-8 configuration with pricing.
