Can the 12-5S run two 1390 laser machines at the same time?

Yes. The 12-5S connects two 1390 CO₂ lasers simultaneously, or one 1325 laser. For more stations, a second unit or the larger central systems may be needed.

Is the 12-5S airflow adjustable?

Yes. The smart touch panel provides adjustable airflow, so you can match extraction power to the material and job.

How often do I clean the ESP module?

Wash the ESP module every 1–3 months with warm water and an alkaline degreaser, then let it dry completely before reinstalling.

What materials is the 12-5S designed for?

Acrylic, rubber sheets, wood, and similar non-metal materials cut on 1390 or 1325 CO₂ lasers. For continuous heavy MDF smoke, the 12-5W is the specialist model.

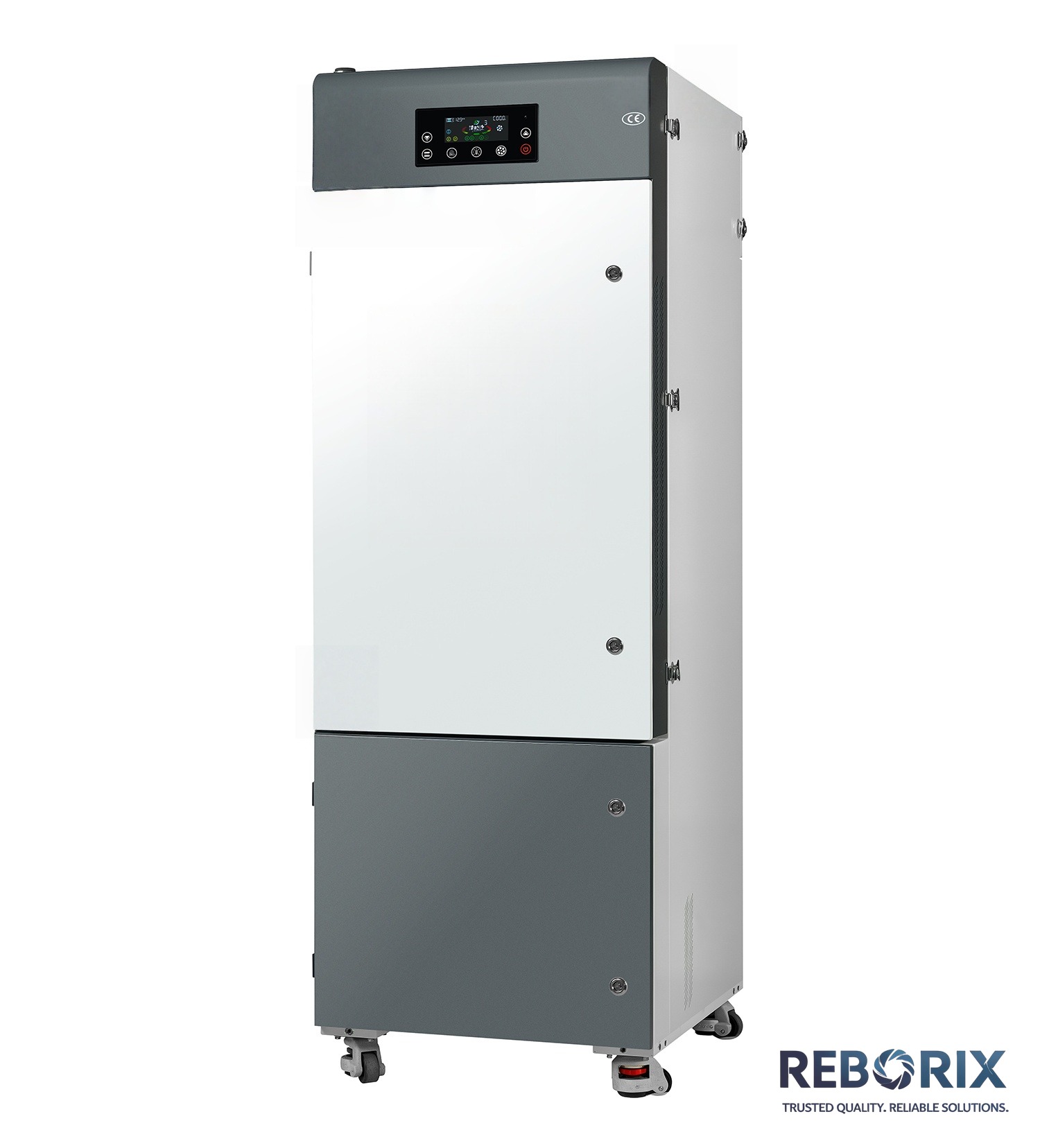

12-5S CO₂ Laser Fume Extractor for 1390 & 1325 Machines

Name: 12-5S CO₂ Laser Fume Extractor
Brand: Reborix
SKU: RBX-12-5S

Best Seller · ESP · CO₂ Cutting

Model 12-5S — 500–3,000 m³/h ESP Extractor

Purpose-built for CO₂ laser cutting of acrylic, rubber, and wood. Washable ESP filtration with no disposable cartridges — the lowest running cost in its class.

500–3,000 m³/h adjustable airflow | 3.4 kW (2.2 kW fan) | 168 kg
Runs two 1390 CO₂ lasers simultaneously — or one 1325 laser
8-stage filtration: Mesh + Carbon Cotton + ESP + 5× UV + 4× Ion + Carbon Barrels + Honeycomb + Carbon Tray
Adjustable airflow via smart touch panel
≤65 dB noise | 220/230/110 V · 50/60 Hz
CE certified | 12-month warranty

Get Quote → Get a Recommendation →

Which Machines Does the 12-5S Serve?

Two 1390 CO₂ Lasers

Connect two 1390 engraving/cutting lasers to one 12-5S and extract both simultaneously. Cap unused inlets to keep capture velocity high.

One 1325 CO₂ Laser

A single 1325 large-format laser is also a direct match — the adjustable airflow up to 3,000 m³/h clears the full bed of smoke and odor.

High-Power Marking

Also suited to high-power marking machines that generate heavier fume than a compact desktop unit can handle.

Materials: acrylic, rubber sheets, wood, textiles and other non-metal laser fume. Cutting continuous heavy MDF all day? See the 12-5W, the MDF heavy-smoke specialist.

12-5S Full Specifications

Specification	Value
Model	RBX-12-5S
Filtration type	Washable ESP (electrostatic precipitation)
Airflow	500–3,000 m³/h (adjustable)
Noise	≤65 ±5 dB
Power	3.4 kW (2.2 kW fan)
Dimensions	560 × 660 × 1720 mm
Weight	168 kg
Inlet	Ø150 / 200 mm
Outlet	Ø200 mm
Voltage	220 / 230 / 110 V · 50/60 Hz
Certification	CE (Machinery, LVD, EMC)
Warranty	12 months

8-Stage Filtration, Layer by Layer

Stainless steel mesh filter — catches coarse particles and debris
Carbon fiber filter pad — first-pass smoke and odor adsorption
Electrostatic (ESP) module — captures 99.97% of particles down to 0.1 μm (washable)
5× electronic UV lamps — break down VOCs and sterilize
4× electronic ion filters — neutralize residual odor
8× activated carbon barrels — adsorb remaining odors and gases
Honeycomb activated carbon pack — high-surface-area odor polish
Activated carbon tray — final-stage gas capture

Maintenance & Cleaning

Pre-filter mesh: wash every 1–2 weeks
ESP module: wash every 1–3 months with warm water and an alkaline degreaser
Activated carbon (barrels + honeycomb + tray): replace every 12–18 months

⚠️ Important: After cleaning, allow the ESP module to dry completely before reinstalling and operating the machine. Installing a wet or damp ESP module may cause electrical short circuits or equipment faults.

See the full maintenance & cost schedule and our step-by-step ESP cleaning guide.

Common Questions

Can it run two 1390 machines at once?
Yes — two 1390 CO₂ lasers simultaneously, or one 1325 laser.

Acrylic or MDF — how do I choose?
For acrylic, rubber, wood and general CO₂ cutting, the 12-5S is ideal. For continuous heavy MDF smoke, the 12-5W is purpose-designed for that duty.

Is the airflow adjustable?
Yes — 500–3,000 m³/h via the smart touch panel, so you can match airflow to the material and job.

How many inlets, and how do I cap unused ones?
Ducting connects at Ø150 or Ø200 mm. When running a single machine, cap unused inlets to maintain capture velocity at the active station.

What about CE and warranty?
CE certified (Machinery, LVD, EMC) with a 12-month warranty. CE documents available on the Downloads page.

Get a 12-5S Recommendation

Tell us your machine and material — we'll confirm the 12-5S is right for you and send pricing within 24 hours.

Compare the 12-5S Against Every Reborix Model

See airflow, filtration, and machine fit side by side.

Compare All Models →

See it in action: the 12-5S running three machines in a Netherlands workshop →
