How to Clean and Dry Your ESP Module Before Reinstalling

If you own a laser fume extractor with an ESP (electrostatic precipitator) core, washing the collection cell is the cheapest maintenance you'll ever do — no replacement filters to buy. But there is one rule you cannot skip: the ESP module must be completely dry before you reinstall it. Reinstalling it even slightly damp is the single most common cause of the short-circuit or sparking warning.

⚠️ Important: After cleaning, allow the ESP module to dry completely before reinstalling and operating the machine. Installing a wet or damp ESP module may cause electrical short circuits or equipment faults.

Why a Damp ESP Module Triggers a Warning

An ESP cell cleans the air with high voltage — typically 8–12 kV between its aluminum collection plates and discharge wires. High voltage and water simply do not mix. If moisture is left on the plates, the insulators, or the electrical connections, it creates a conductive path for current to jump where it shouldn't. The result is exactly what the warning describes: a short circuit, visible sparking inside the cell, and in the worst case a "start a fire" alarm.

The good news: in almost every case this is a drying issue, not a broken machine. Fix the moisture and the warning clears on its own.

How to Wash the ESP Module (Step by Step)

Regular washing keeps the ESP plates capturing 99.97% of particles down to 0.1 μm. Here's the correct sequence:

1. Power off and unplug the extractor completely.
2. Remove the ESP cell — open the side access door and slide the module out by its handle.
3. Rinse with warm water. For oily or tarry residue from acrylic, wood, or plastic fumes, add a mild detergent.
4. Brush between the plates with a soft-bristle brush. Never force anything between the aluminum plates — they bend easily.
5. Rinse thoroughly until the water runs clear and no detergent remains.
6. Shake off excess water and move straight to drying.

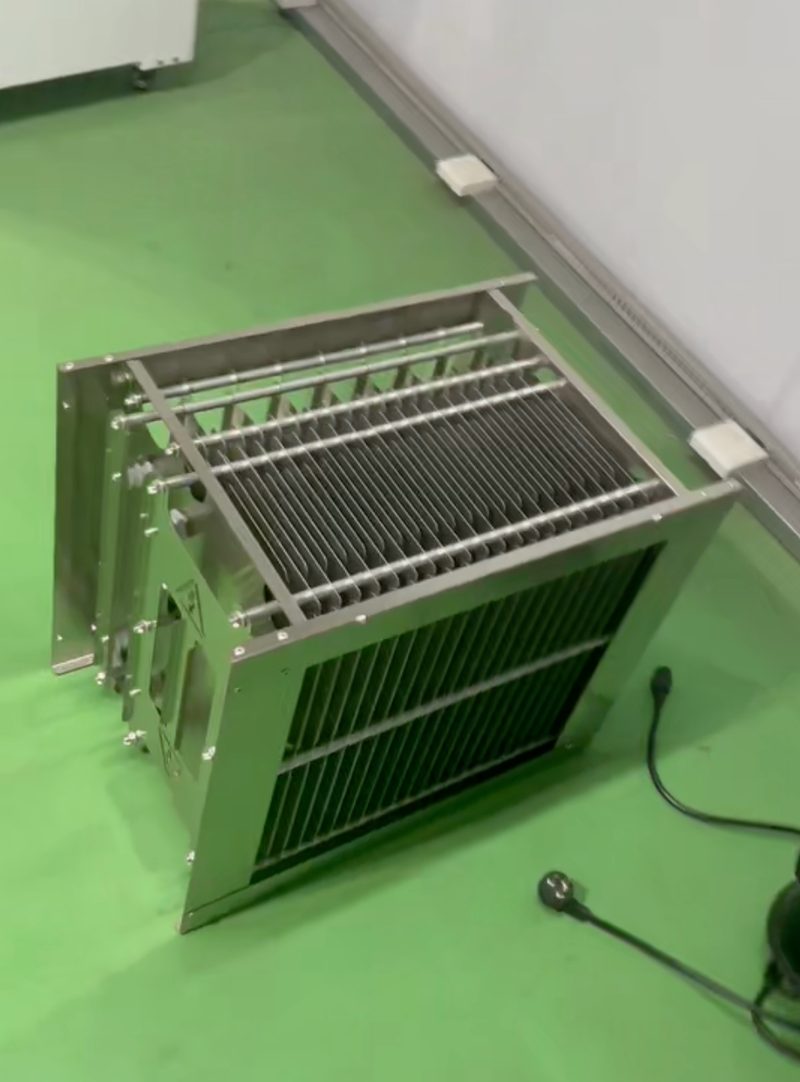

Washing the ESP collection cell — the plates are washable and reusable, but must be fully dried before reinstall.

How to Dry the ESP Module Completely

This is the step most short-circuit warnings come from. Moisture hides in the narrow gaps between plates, in the corners, and around the insulators — places that look dry but aren't yet. Give the cell real drying time:

• Air dry or sun dry the cell standing upright in a clean, ventilated area.
• Allow 12–24 hours in most conditions — a full day is the safe default. Humid workshops take longer.
• Speed it up with compressed air (blow out between the plates and around the insulators) or a fan.
• Check before reinstalling: no visible droplets, plates and insulators dry to the touch, no damp smell, and ideally no mist when you blow air through the cell.

Let the ESP module dry completely — a full day of air or sun drying is the safest rule before reinstalling.

What to Do If You See the Short-Circuit / Sparking Warning

If the ESP module was not completely dry when it was reinstalled, the remaining moisture can sometimes cause the short-circuit or sparking warning. If this happens, work through this checklist in order:

1. Check the aluminum plates are not deformed. Bent or curled plates narrow the air gap and can touch the discharge wires, causing a short. Straighten them gently if needed.
2. Check that no foreign material is stuck inside. A metal shaving, a stray washer, or any conductive debris bridging the plates will trigger the same warning. Remove it carefully.
3. Make sure the ESP module is installed in the correct direction. Match the airflow arrow on the cell to the direction marked on the machine.
4. If everything looks normal, close the access door, turn on the fan, and let it run with ventilation for a while.

Once the remaining moisture has completely evaporated, the warning should normally disappear and the ESP returns to normal operation. So after washing the ESP, the most important thing is to make sure it is completely dry before reinstalling it.

How Often Should You Clean the ESP Module?

• Light use (laser marking, a few hours a day): every 1–3 months.
• Heavy use (acrylic or wood cutting all day): every 2–4 weeks.
• Signs it's time: reduced suction, visible residue building up on the plates, or a drop in fume capture.

A clean, dry ESP cell keeps your extractor running at full efficiency and your consumable cost near zero. Want the full maintenance picture? See our laser fume extractor maintenance & cost guide.

ESP Cleaning: Quick Do / Don't

Frequently Asked Questions

Why does my extractor show a short-circuit warning after I wash the ESP module?

Almost always, moisture. If the cell wasn't completely dry when reinstalled, the remaining water creates a conductive path across the high-voltage plates. Dry the cell fully, then run the fan to ventilate until the warning clears.

Is a sparking warning dangerous?

It should be taken seriously, but it is usually a drying problem rather than a machine fault. Power off, remove the cell, inspect for deformed plates or foreign material, confirm the direction, and dry it completely before restarting.

Can I speed up ESP module drying?

Yes — compressed air through the plate gaps and around the insulators, or a fan, will noticeably shorten drying time. Just confirm there is no remaining moisture before reinstall.
