Laser Fume Extraction for Signage & Engraving — Acrylic, Wood, Plastic

The Signage Shop Challenge: Sticky, Smelly Fumes

Signage and engraving shops produce some of the most challenging fumes for extraction systems. Acrylic creates thick, sticky smoke that clogs HEPA cartridges within days. MDF and plywood produce fine wood dust mixed with formaldehyde-based binder resins. PVC releases hydrogen chloride gas and dioxins. Laser-engraved anodized aluminum releases fine metal particles.

This is where 12 Series ESP technology excels — washable electrostatic collection plates handle sticky acrylic fumes that would ruin a $200 HEPA cartridge in a week. Annual consumable cost: $50–90 (pre-filters only).

Catalog-Based Application Guide

Material / Process	Machine Size	Recommended	Key Spec	Why
Acrylic cutting (high volume)	1390	12-4	1,000 m³/h, 2.3 KW, built-in fan	6-stage ESP + UV + Carbon, plug-and-play
Acrylic cutting (high volume)	1325	12-4S	1,800 m³/h, 3.4 KW, built-in fan	Same 6-stage, higher airflow for larger bed
MDF / Plywood cutting (single machine)	1390–1325	12-5W	3,000 m³/h	Wood specialist — enhanced carbon for formaldehyde resins
MDF / Plywood (multi-machine)	Industrial line	12-5W	3,000 m³/h	8-stage: Mesh + Carbon Fiber + ESP + UV + Ion + HEPA + Carbon

PVC Cutting Warning
PVC releases hydrogen chloride gas and dioxins when laser-cut — toxic and corrosive to machine components. If PVC cutting is required, use the 12-5/5S with 8-stage filtration (enhanced carbon bed). Never cut PVC without extraction.

Recommended Models

Best for 1390

12-4/4S — All-in-One

1,000–1,800 m³/h with built-in fan. The standard choice for 1390/1325 laser cutters in sign shops. 6-stage ESP + UV + Carbon. Plug-and-play.

View Details →

Wood & MDF

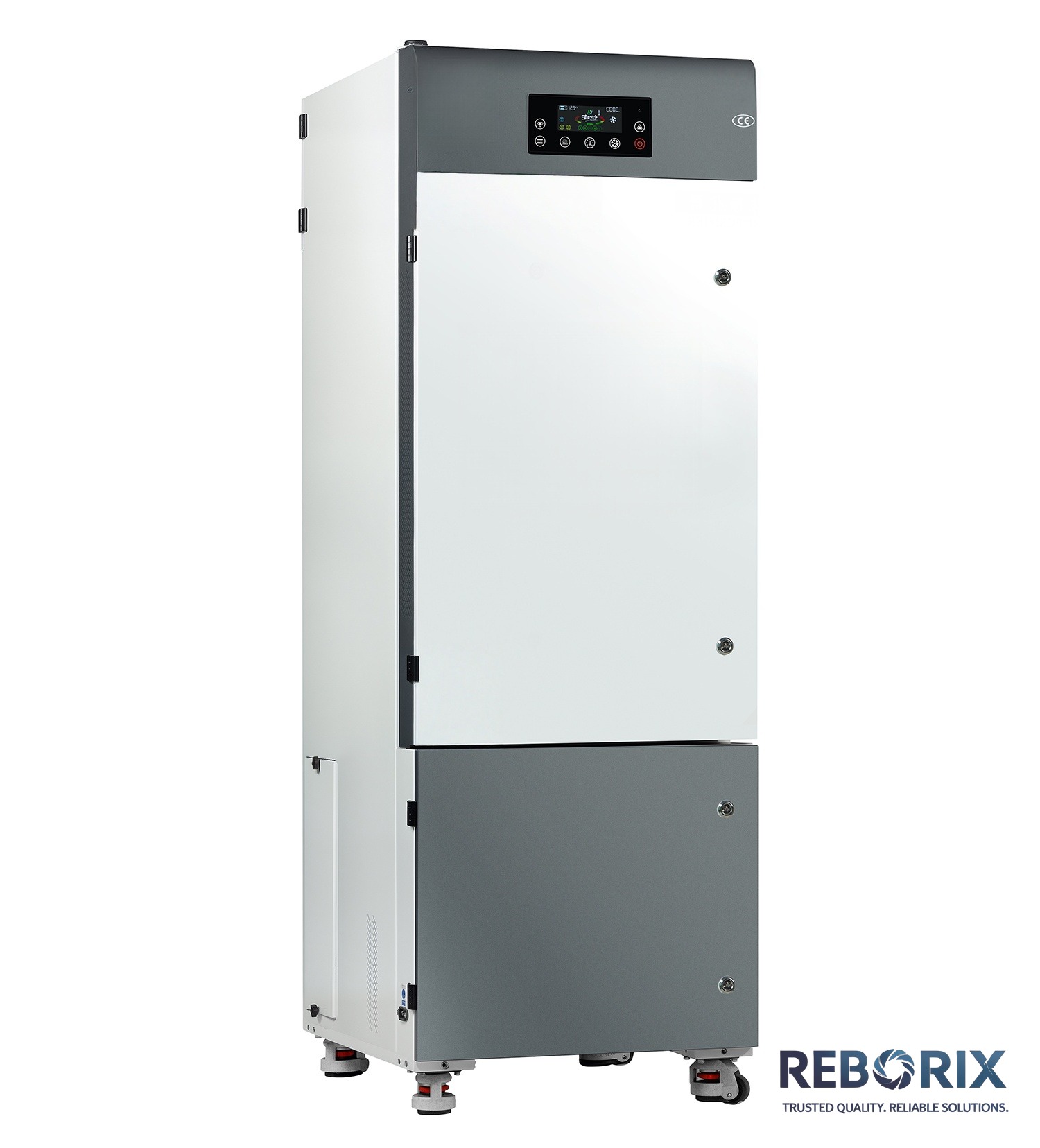

12-5W — Wood Specialist

3,000 m³/h. Purpose-built for MDF and plywood cutting. Enhanced carbon filtration for formaldehyde resin VOCs. 8-stage: Mesh + Carbon Fiber + ESP + UV + Ion + HEPA + Carbon.
